Default Rehash - Reopen/Revive old thread...

Wondering if anyone has the details on the C4 front hub/spindles? if that would get to a drop - although some geometry to work out too.



BBShark has some nice CAD work for the C3 spindle -

but I can't find a C4 front hub/spindle CAD or dimensioned drawing to save me.

Also wondering if anyone has seen these over at Jegs and if they might fill the bill?

Attached Images

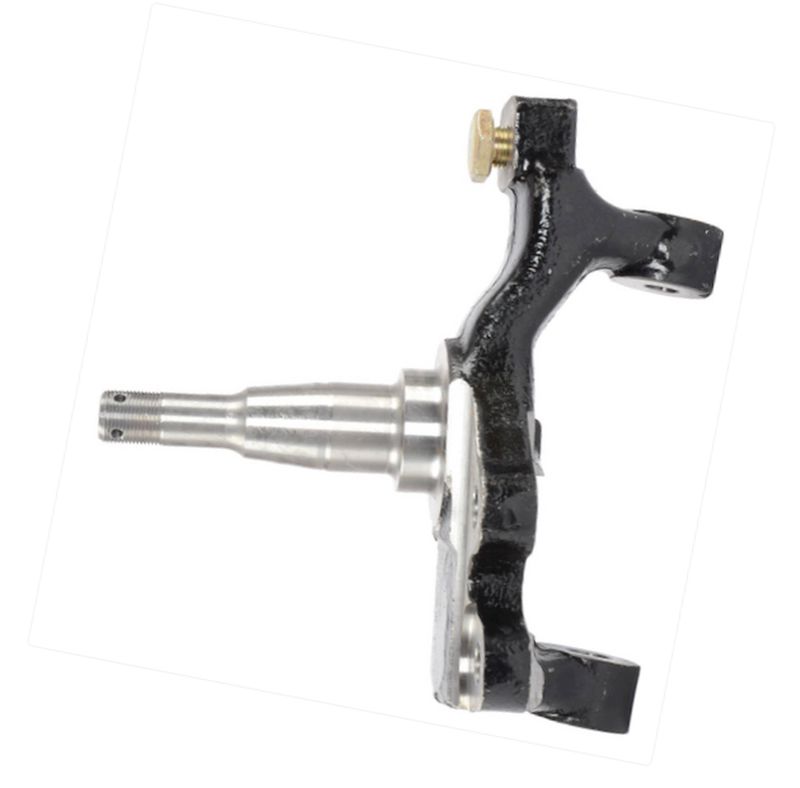

File Type: jpg c4 knuckle.jpg (49.1 KB, 3 views)
File Type: jpg c3 front spindle - hub.jpg (141.3 KB, 2 views)
File Type: jpg JEGS 2 INCH DROP.jpg (51.5 KB, 2 views)
File Type: jpg JEGS 2 INCH DROP SIDE.jpg (26.4 KB, 1 views)
